H150N2 TlT Industrial Fan Accessories Main Bearing Box Rust Resistance

1 piece
H150N2 TlT  Industrial Fan Accessories Main Bearing Box Rust Resistance
Features Gallery Product Description Request A Quote
Maximum Speed: 1800r/min
Maximum Oil Quantity: 9L
Tightening Torque: 60Nm
Maximum Diameter: 515mm
Total Length:: 1257mm
Grease:: Rust Resistant Oil
High Light:

Industrial Fan Accessories Bearing Box


Bearing Box Rust Resistance


Industrial Fan Accessories Rust Resistance

Basic Infomation
Place of Origin: Shanghai
Brand Name: YIKU
Model Number: H150N2
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 2-3 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 units/month
Product Description

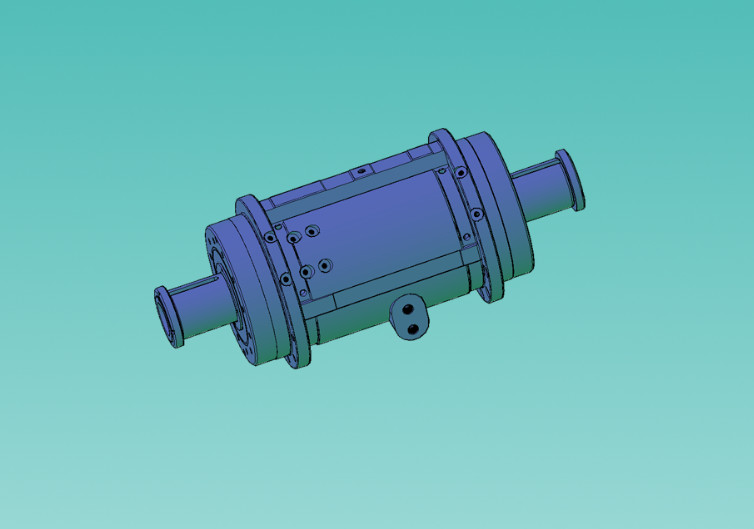

H150N2 main bearing box





1. Set the inner ring of the bearing, the front of the impeller, the corresponding shaft mating surface and both ends of the thread plated with copper, and then coated with anti-rust oil.

2. Coating the processing surface with anti-rust oil.

3. When storing in the warehouse, the journal of the blade wheel should be coated with hard film grease and wrapped with oil paper.

4. Maximum working speed of bearing box :n=1800r/min.

5. Oil quantity at the highest oil level :V=9L.

6. Tightening torque of bearing box cover screw :M/A=60Nm.

The main shaft and the rolling bearing are placed in a cast iron housing, which is centrally installed in the lower half housing of the fan and bolted.

A roller bearing is installed at each end of the spindle to bear the radial force. In order to bear the axial force, a centripetal thrust ball bearing is installed at the end of the near coupling to bear the axial force in the direction of the reverse airflow. The fan is equipped with a centripetal thrust ball bearing, and the primary fan is equipped with two centripetal thrust ball bearings.
