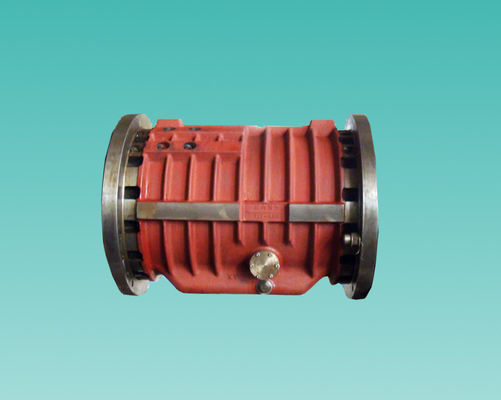

H180N1 Bearing Box Parts Of TlT Axial Fan QT50-5 Bearing Housing Shell

1 piece
MOQ
negotiable
Price
H180N1 Bearing Box Parts Of TlT Axial Fan QT50-5 Bearing Housing Shell
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Bearing Box
Model: SOGA0063
Material: QT50-5
Weight:: 444kg
Purpose:: Oil Storage
Applicable To:: H180N1 Bearing Box
High Light:

QT50-5 Bearing Housing

,

TlT Axial Fan Bearing Housing

,

QT50-5 Bearing Box Parts

Basic Infomation
Place of Origin: Shanghai
Brand Name: YIKU
Model Number: SOGA0063
Payment & Shipping Terms
Packaging Details: box
Delivery Time: 2-3month
Payment Terms: L/C, T/T
Supply Ability: 2 piece/month
Product Description

H180N1 Bearing housing shell



1.金加工后进行密封试验,试验压力为29.43Pa,试验时间为15分钟,要求轴承箱本身不渗漏.
2.用5倍放大镜检查铸件加工表面,不允许有气孔.
3.铸件尺寸偏差应符合JB2854-80中7级精度规定.
4.尺寸710mm需保证有足够的加工余量,不得有黑疤.



1. Seal test is carried out after gold processing, the test pressure is 29.43Pa, the test time is 15 minutes, and the bearing box itself is required not to leak.

2. Check the machining surface of the casting with a 5x magnifying glass, and no pores are allowed.

3. The size deviation of the casting shall comply with the 7-level accuracy specified in JB2854-80.

4. The size of 710mm should ensure that there is sufficient processing margin, and there should be no black scar.
