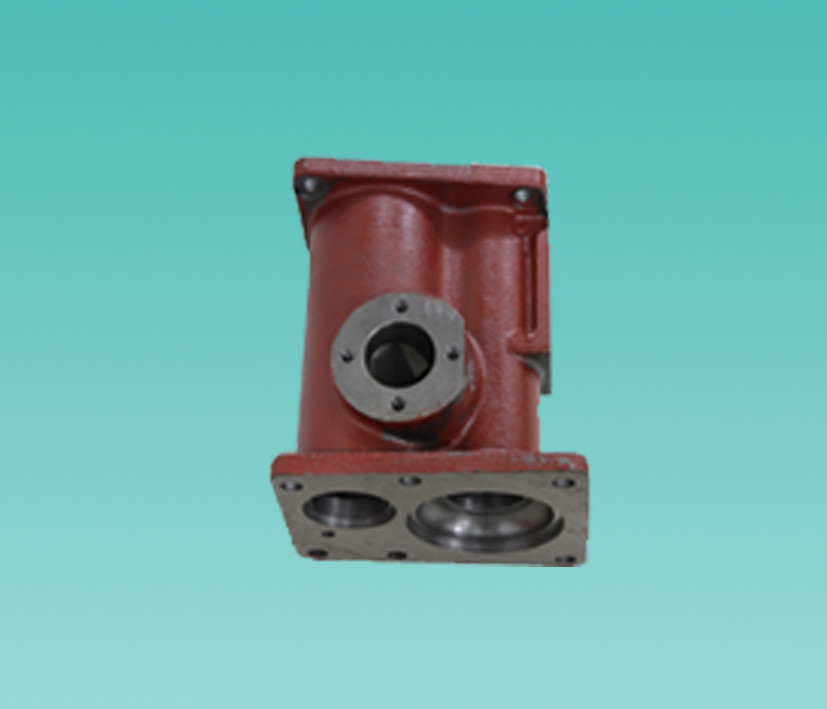

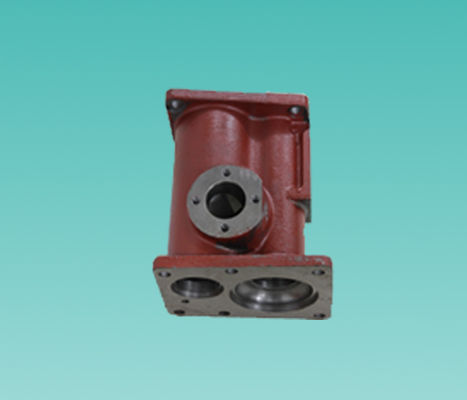

336/100 Hydraulic Cylinder Spares Guide Housing Upper HT200 Material

1 piece
336/100 Hydraulic Cylinder Spares Guide Housing Upper HT200 Material
Features Gallery Product Description Request A Quote
Name:: Housing
Model:: 1GA3657
Material:: HT200
Weight:: 7.6kg
Purpose:: Case
Applicable To:: 336/100 Hydraulic Cylinder
High Light:

HT200 hydraulic cylinder spares


hydraulic cylinder spares Guide Housing


hydraulic cylinder components Guide Housing

Basic Infomation
Place of Origin: Shanghai
Brand Name: YIKU
Model Number: 1GA3657
Payment & Shipping Terms
Packaging Details: box
Delivery Time: 2-3 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 units/month
Product Description

336/100 Guide Housing(Upper)




Hydraulic cylinder component

Piston rod, toothed rod - Connecting the control spool group together are the blood vessels and heart parts of the hydraulic cylinder.

Guide housing - control the hydraulic piston left and right movement, drive the indicating mechanism operation, easy to observe the full open and close.

Hydraulic shell - hydraulic transmission command chamber, control oil inlet, oil return, left and right direction, command full open or full close.

Connecting flange - easy to fix on the fan support body, using the cylinder block to adjust the push disk, the adjustment rod to drive the blade fully open and close.
